Version: 2.0.0-preview

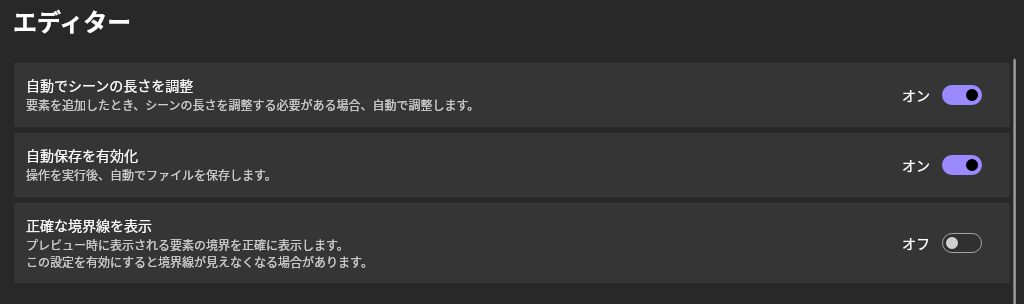

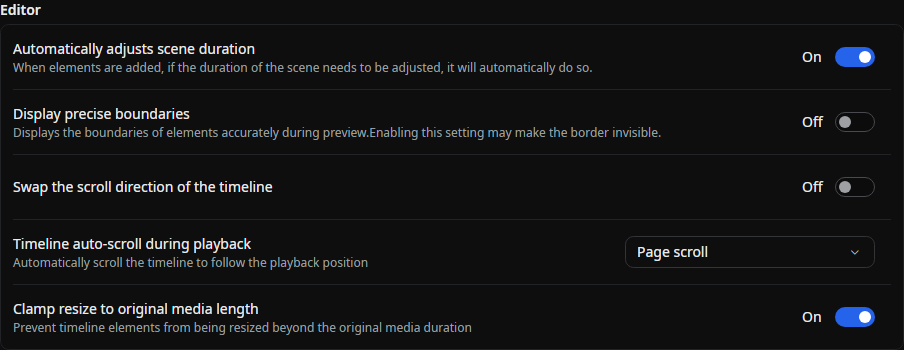

Editor

Automatically Adjust Scene Length​

When enabled, the scene length will be automatically adjusted when an element is added if necessary.

Enable Auto-Save​

When enabled, files will be automatically saved after performing actions.

Show Precise Boundaries​

When enabled, the boundaries displayed during the preview will be shown precisely.

For objects like rectangles, the boundary lines might overlap with the drawing content, making the boundaries invisible.

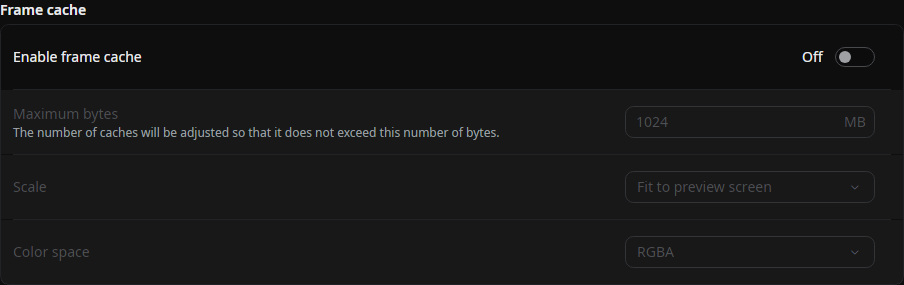

Frame Cache​

Enable Frame Cache​

When enabled, frame caching is activated.

The default setting is "On".

Maximum Byte Size​

Adjust the cache size to not exceed this byte size (in megabytes).

The default value is half of the device's memory capacity.

Scale​

When saving the cache to memory, use this setting to reduce resolution to save memory.

  • Original
  • Match preview screen (default value)
  • Half
  • Quarter
tip

If the preview screen size is equal to or larger than the original size, the resolution remains unchanged.

Color Space​

When saving the cache to memory, use this setting to change the color space to save memory.

  • RGBA (default value)
  • YUV
tip

YUV uses I420.

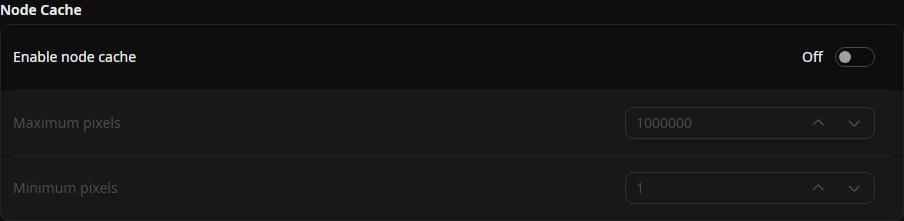

Node Cache​

Enable Node Cache​

When enabled, node caching is activated.

The default setting is "On".

Maximum Pixel Count​

Nodes exceeding this pixel count will not be cached.

The default value is "1000000".

Minimum Pixel Count​

Nodes below this pixel count will not be cached.

The default value is "1".

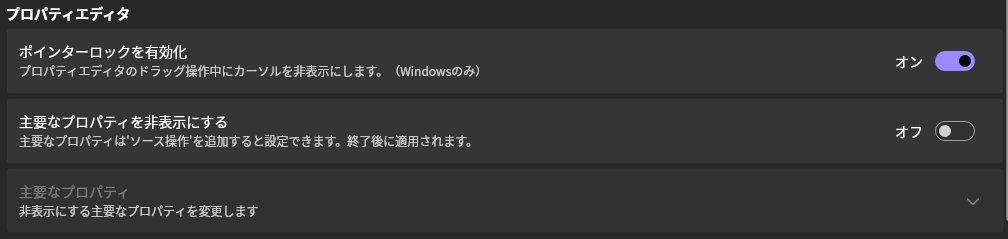

Property Editor​

Enable Pointer Lock​

Locks the cursor and hides it during drag operations in the property editor (Windows only).

The default setting is "On".

Hide Key Properties​

Hides properties that are also provided as source operations.

The default setting is "Off".

Key Properties​

When "Hide Key Properties" is enabled, set the properties to hide.
